Specification

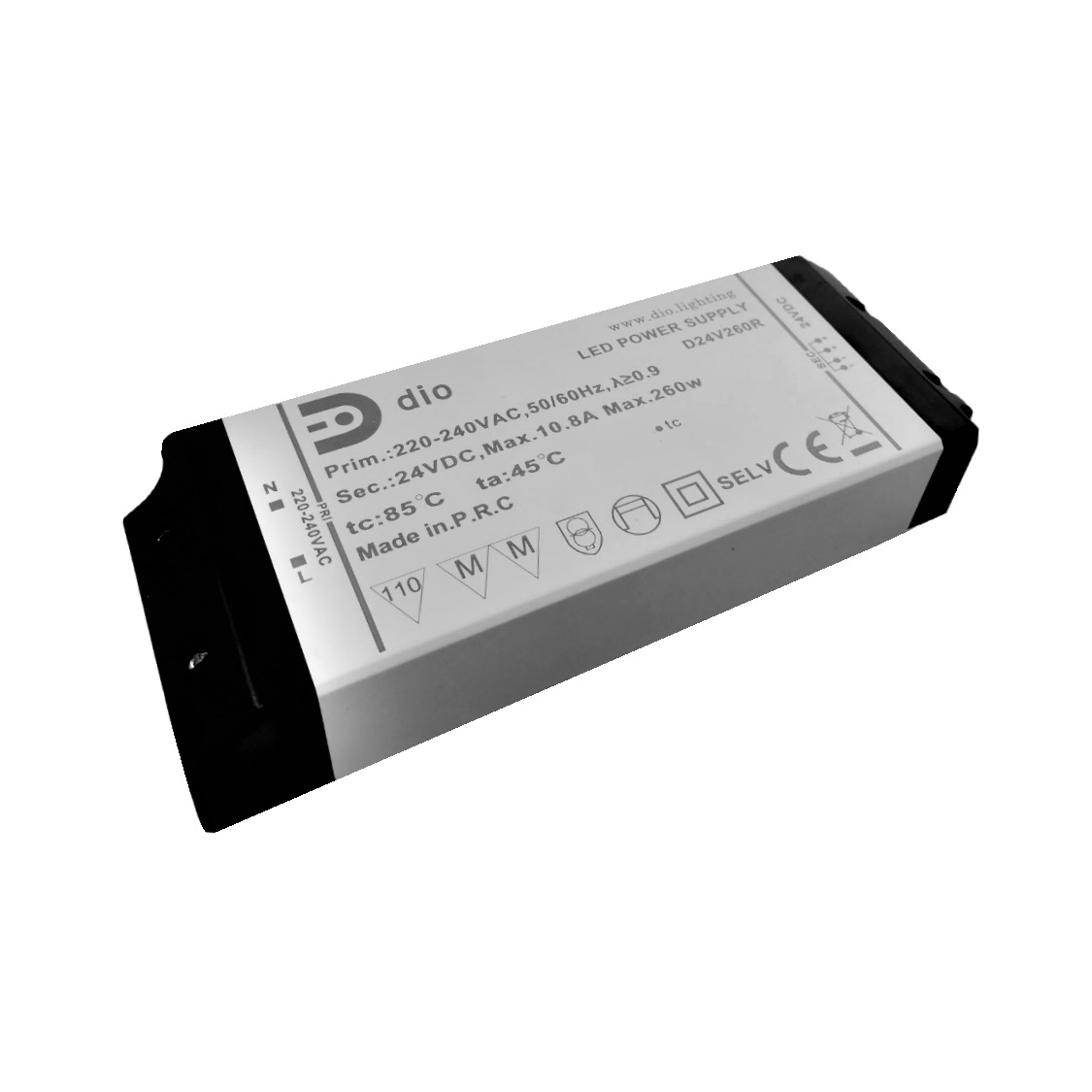

  • SKU: A-T/D24V260R
  • Voltage : 24 V
  • Ingress protection : IP20
  • Warranty : 5 years
  • Power : 260
  • Input voltage : AC 220–240 V, 50/60 Hz
  • Load range : 0–260 W
  • Rated output current : 10.8
  • Input current : 2.5 A
  • Power factor : ≥ 0.9
  • Max ambient temperature (Ta) : 45
  • Max case temperature (Tc) : 80
  • Protections : Short circuit, overload, overheat and open circuit; automatic reset
  • Compliance standards : EMC 2014/30/EU, LVD 2014/35/EU
  • Output connection : Cable H03VVH2-F 2×0.75 mm²

Fizinės savybės

  • Length: 210 mm
  • Width: 80 mm
  • Height: 36 mm

Dokumentai

Datasheet (EN) PDF Datasheet (LT) PDF
