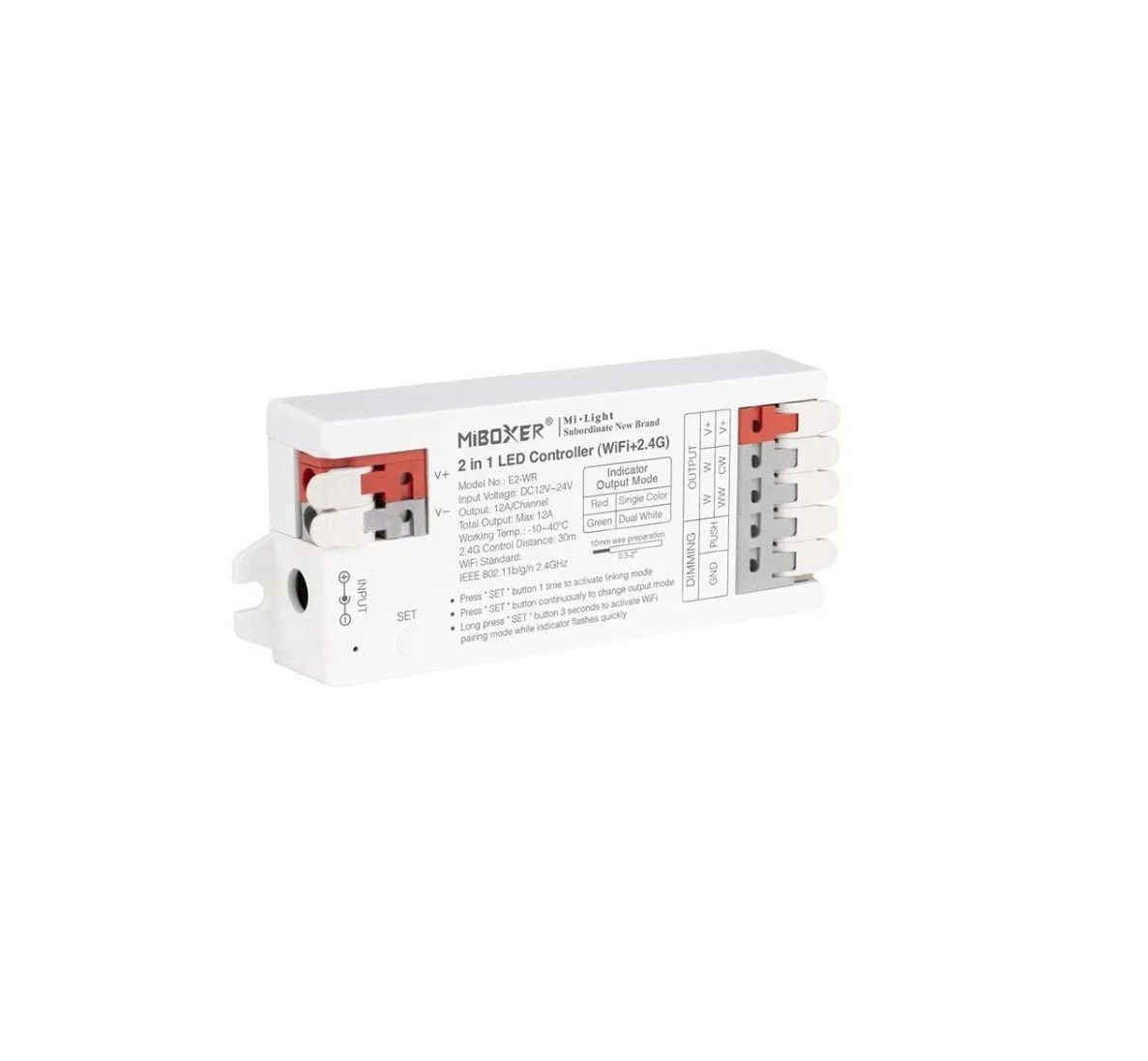

Controller for 1 zone WIFI single/CCT color LED strip (ECO)
Controller for 1 zone WIFI single/CCT color LED strip (ECO)
Controller for 1 zone WIFI single/CCT color LED strip (ECO)
Controller for 1 zone WIFI single/CCT color LED strip (ECO)
LED lighting Controllers CCT controllers

Controller for 1 zone WIFI single/CCT color LED strip (ECO)

The main advantages of the controller:

1. Ability to manage:
Monochrome and CCT LED STRIPS up to 144w (12V) / 288w (24V)

2. Extremely easy connection of the controller to the remote control (sold separately)!

– After switching on the controller, touch the zone to which you want to connect 3 times

3. The controller can be connected to a smart device via a WIFI connection

4. Fast cable connection

5. Additional functions:

-Each controller can be linked to a separate room. The gadget allows you to make various advanced settings.

APPLICATION

32.23 €
/pcs.

Specification

  • SKU: A-V/EW-01/2
  • Working distance : 30m
  • Ingress protection : IP20
  • Voltage : 12/24 V
  • Power : 144
  • Input voltage : DC 12–24 V
  • Output current : 12 A per channel, 12 A total
  • Max load : 144 W @ 12 V, 288 W @ 24 V
  • Output mode : Single colour or CCT (switchable)
  • Working temperature : −10…+40 °C
  • Output connection : Common anode
  • Control signal : WiFi + 2.4 GHz RF, Bluetooth 4.2
  • Warranty : 5 years
  • WiFi standard : IEEE 802.11 b/g/n, 2.4 GHz
  • Bluetooth : Bluetooth 4.2 (low energy)

Fizinės savybės

  • Length: 100.6 mm
  • Width: 40 mm
  • Height: 17.6 mm
